How to Test Power Bank Capacity: No More Performance Guessing

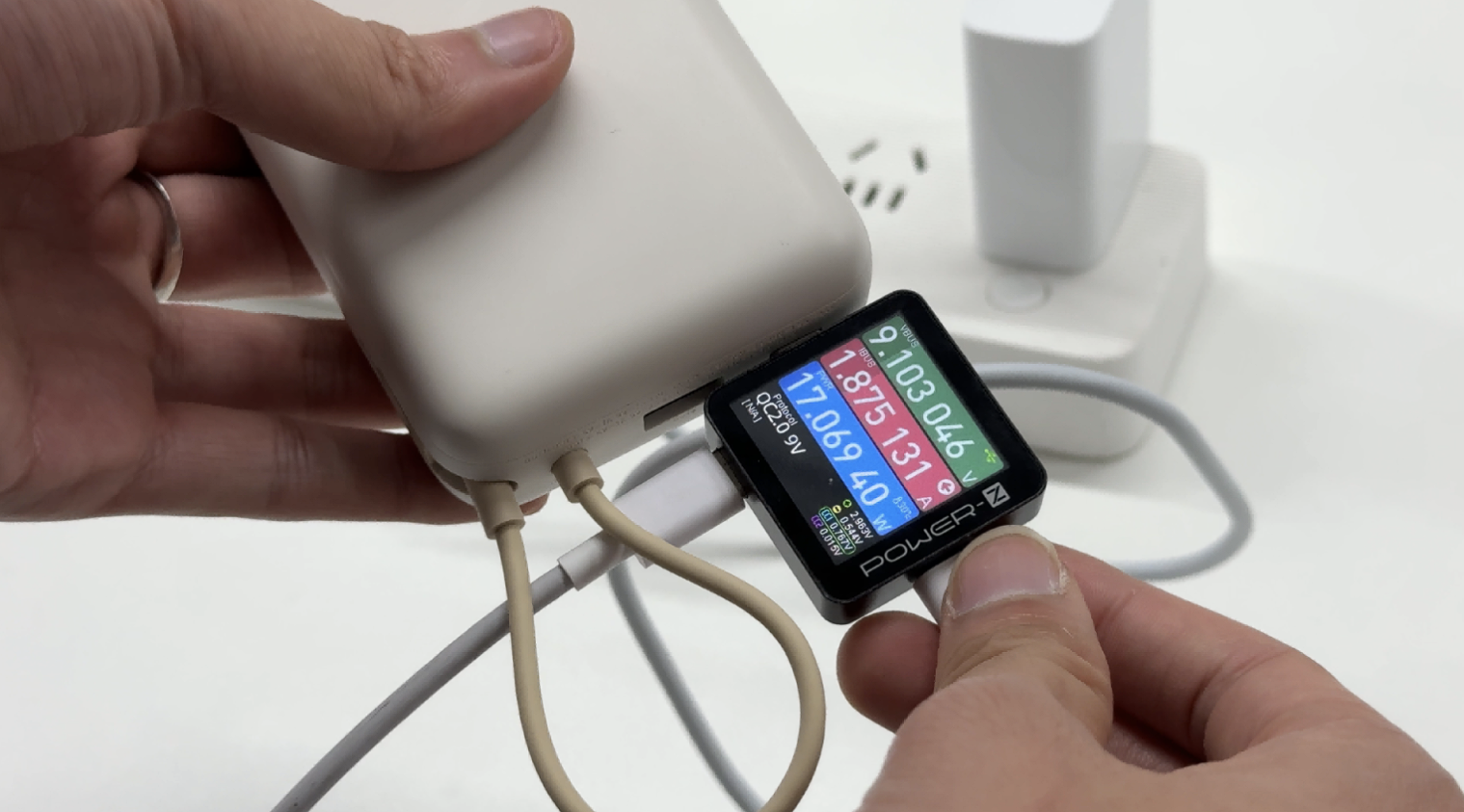

Image via Chargerlab
If you’ve ever stared at the numbers stamped on your power bank—10,000 mAh, 20,000 mAh, maybe even 50,000 mAh—and wondered “Does it really hold that much?”, you’re not alone. Specs look impressive on paper, but in real-world use, many power banks tap out much sooner than expected. That’s when doubt creeps in: Did I get ripped off? Is my power bank aging fast? Or are these numbers just marketing smoke and mirrors? This uncertainty is exactly why so many people are looking for ways to verify their device's power bank battery capacity.
The good news: you don’t have to live with that uncertainty. With a cheap USB tester and a little know-how, you can measure exactly how much energy your power bank delivers. If you've ever wondered how to test power bank capacity, or more generally, how to test capacity of power bank, this guide is for you. We'll show you how to finally separate fact from fiction. No engineering degree required, no more performance guessing.
In this guide, we’ll break down why advertised capacity rarely equals usable capacity, the simple tools you’ll need to test yours, and how to run the process step by step. By the end, you’ll know whether your portable charger is a trusty sidekick or an overhyped brick.
Let’s get started!
The Great Misunderstanding: Why the Numbers Seem a Lie
Before we get to the how-to, let's understand the "why." The biggest reason for the discrepancy between the advertised capacity and real-world performance is a simple fact that manufacturers often gloss over: the rated capacity is measured at the battery's internal voltage, typically 3.7V, while your devices charge at a higher voltage, typically 5V. This is the first thing to grasp when learning how to test a power bank.
A power bank’s battery cells are almost certainly 3.7 volts. This is the standard voltage for lithium-ion and lithium-polymer cells. The capacity printed on the box (let's say 10,000mAh) is the capacity at this 3.7V.
However, the USB standard that your phone, tablet, and every other gadget uses operates at 5 volts. Your power bank can’t just shove 3.7V out the USB port; it needs to boost that voltage up to 5V. And guess what? That process of boosting voltage (called DC-DC conversion) is not 100% efficient. Some energy is lost as heat.
On top of that, there's also another factor: the cable and device inefficiency. Your charging cable isn't perfect, and neither is your power bank’s own internal circuitry, its indicator lights, and other components also sip a little bit of power. So, we have two key factors:
- Voltage Conversion (3.7V → 5V)
- Conversion Efficiency (Energy lost as heat)
This means the actual energy you can get out of the USB port is significantly less than the energy stored inside the battery cells.
The Theoretical Output
To find the theoretical maximum you could get at 5V, assuming a perfect, 100% efficient conversion (which doesn't exist), you would rearrange the formula:
- Theoretical Output (mAh) = Stored Energy (Wh) / Output Voltage (V) × 1000
- Theoretical Output = 37 Wh / 5 V × 1000 = 7,400 mAh
Even in a perfect, lossless world, a 10,000mAh (3.7V) power bank could only possibly deliver 7,400mAh at 5V. That’s a 26% reduction right off the bat. This is a crucial calculation to understand when learning how to test power bank capacity.
The Realistic Output
Now introduce reality. A decent power bank has an efficiency rating of anywhere from 80% to 95%. Let’s assume a good, average efficiency of 90%.
- Realistic Output (mAh) = Theoretical Output × Efficiency
- Realistic Output = 7,400 mAh × 0.90 = 6,660 mAh
And there it is. Your "10,000mAh" power bank can realistically only deliver about 6,660mAh of charge to your devices. Suddenly, it only charging your 3,000mAh phone a little over twice makes perfect sense.
This isn’t the manufacturer scamming you (well, most of the time); it’s just basic electrical engineering and physics. The scam is in the marketing that doesn’t explain this anywhere on the box.
How to Test Power Bank Capacity: Tools to Gear Up
Armed with knowledge, let’s now get geared up with a few essential tools. Don't worry, they're not expensive or hard to find, and they're all you need to learn how to test the capacity of a power bank.
Tool #1: USB Power Meter/Multimeter
This is the most crucial tool. It's a small device that plugs in between your power bank and your device (or a load resistor). It measures the voltage, current, and, most importantly, the total energy (mAh) delivered. Look for one with a USB-C and/or USB-A port, depending on your power bank.
What to look for in a USB tester:
- Measures mAh (milliamp-hours) and Wh (watt-hours): This is non-negotiable. Wh is the gold standard for true energy measurement.
- Data Retention: Can it remember the reading after you unplug it? Essential.
- Backlit Screen: For reading in low light.
- Build Quality: Read reviews. You don’t need a tank, but you don’t want a flimsy piece of plastic either.
This little device is your best friend in the quest for capacity truth.
Tool #2: Electronic Load Resistor
This is a variable resistor that acts as a "dummy" device, drawing a constant, adjustable current from the power bank. Using a dedicated load is better than charging a phone because it ensures a consistent current draw, making the test results more accurate and repeatable.
Tool #3: A Fully Charged Power Bank
This is obvious, but critical. Make sure your power bank is charged to 100% before you begin the test.
Tool #4: Appropriate Cables and Notebook/Spreadsheet
Use high-quality, short cables to minimize voltage drop and resistance. Also, record your test results, because you’ll probably want to compare multiple runs.
Step-by-Step Walkthrough on How to Test Capacity of Power Bank
Ready to put your power bank to the test? Let's walk through the process of how to test portable battery capacity so you can get definitive results.
Step 1: Fully Charge the Power Bank
The first step is to ensure your power bank is topped up. Use a reliable, fast charger and let it sit for a bit after the indicator shows 100% to ensure the internal cells are completely full.
Step 2: Set Up the Equipment
Connect your equipment in this order:
Power Bank → USB Power Meter → Electronic Load
- Plug the USB power meter directly into one of the power bank's output ports. Then, plug the electronic load into the other end of the meter. If you're using a phone, plug the charging cable from your phone into the USB meter.
Step 3: Initiate the Test
- Adjust the Load: If you're using an electronic load, set it to a constant current (CC) mode. A good current to test at is typically 2A. This is a common charging speed for most phones and gives a realistic representation of real-world use.
- Start the Timer: Once you've set the load, the USB meter will start recording the voltage, current, and total capacity (mAh) being drained.
- Let It Run: Let the setup run until the power bank shuts off automatically. This is crucial—you want to drain it completely to measure the full usable capacity. The test may take several hours, so be patient.
Step 4: Record and Analyze the Results
Once the power bank has shut down, the USB meter will display the total capacity delivered in mAh. This is your effective capacity.
Now, compare this number to the advertised capacity.
- Effective Capacity (at 5V): Let's say your 20,000mAh power bank delivered 14,000mAh.
- Advertised Capacity (at 3.7V): 20,000mAh.
To calculate the efficiency, use this simple formula:
Efficiency = (Effective Capacity × 5V) / (Advertised Capacity × 3.7V)
Efficiency = (14,000mAh × 5V) / (20,000mAh × 3.7V) = 70,000 / 74,000 ≈ 0.945 or 94.5%
A result of around 90-95% is excellent. If it's below 80%, you likely have a low-quality power bank, and the manufacturer's claims are highly exaggerated. This process gives you a clear and definitive answer on how to test capacity of power bank.
Once you have this data, you'll be able to make smarter purchasing decisions and have a reliable way to gauge your power bank's true performance.
Beyond Capacity: Other Factors That Affect Performance
Capacity is king, but it’s not the only thing that affects performance.
- Age and Cycle Count: Lithium-ion batteries degrade. After 300-500 full charge cycles, a battery’s capacity can drop to 70-80% of its original capacity. If your old faithful is underperforming, it might just be retiring.
- Heat and Cold: Exposing a power bank to extreme temperatures (left in a hot car, out in the freezing cold) permanently damages the cells and nukes capacity.
- Fast Charging Incompatibility: If your power bank supports PD 3.0 but your phone uses Quick Charge 4+, they might not handshake properly and will default to slow, standard 5V/2A charging, making the charging process take forever and feel inefficient.
Final Thoughts
Testing your power bank's capacity can save you from a lot of frustration and wasted money. Armed with a simple USB meter and a bit of patience, you can finally cut through the marketing fluff and get a clear picture of what you've actually purchased. By understanding how to test power bank capacity, you can:
- Verify marketing claims and hold manufacturers accountable.
- Compare different power banks accurately to see which one is truly the best.
- Diagnose an aging power bank to see if it’s time for a replacement.
- Set realistic expectations for how many charges you’ll actually get.
The goal isn’t to find a power bank that delivers 100% of its advertised capacity—that’s a unicorn. The goal is to find one with high efficiency (85%+), good build quality, and a reputation for honesty. If your test reveals a power bank performing far below even reasonable expectations, you now have the data you need to leave a truthful review or request a refund. This knowledge is essential to anyone wanting to learn how to test capacity of power bank.
So, go forth and test. Unplug from the guessing game and plug into the empowering world of real, measurable performance. Your gadgets (and your peace of mind) will thank you for it.
Frequently Asked Questions
Q: My power bank has multiple USB ports. Should I test them all?
Yes, you should test each output port individually. Different ports can have different power ratings (e.g., one standard 5V/2A port and one USB-PD port). Testing each one will give you a complete picture of the power bank's performance and confirm if each port is delivering its advertised output.
Q: Can I test a wireless charging power bank with this method?
You can test the wired output ports of a wireless power bank, but you cannot use a USB meter to directly measure the efficiency of the wireless charging pad itself. Wireless charging is inherently less efficient than wired charging due to energy loss from induction. To test the overall wireless efficiency, you would need to measure the energy consumed by the phone's battery while wirelessly charging and compare it to the energy drained from the power bank's internal cells, a more complex process that is not feasible for most consumers.
Q: Is it normal for my power bank to get warm during the test?
Yes, it is completely normal for a power bank to get warm during a high-load discharge test. The warmth is a result of the DC-DC voltage conversion process, where some energy is converted to heat. As long as the power bank doesn't become excessively hot to the touch, this is an expected part of the efficiency loss.
