PPTC Fuse Protection: How Polyfuse Keeps Power Banks Safe
When you shop for a power bank, you’ll often see safety features listed, things like overcurrent protection or short-circuit defense. But what actually makes those protections work? One quiet protector built in is the PPTC fuse, also known as a polyfuse. It’s tiny, but it plays a big role in keeping both your charger and your devices safe.
Today, we’ll break down what a PPTC fuse is, how it works, why it matters in power banks, and what to look for when buying.
In this blog:
- What Is a PPTC Fuse in a Power Bank?
- How Does a PPTC Fuse Work Inside Power Banks?
- Why Is a PPTC Fuse Important in Power Banks?
- PPTC Fuse vs Regular Fuse
- Do All Power Banks Have PPTC Fuses?
- Curious About the Technical Side?
- Simple Tips You Can Use as a Consumer
- Frequently Asked Questions
Let’s get started!
What Is a PPTC Fuse in a Power Bank?
A PPTC fuse (Polymeric Positive Temperature Coefficient fuse), or polyfuse, is a resettable safety device found in many electronics, including power banks. Its main job is to limit the flow of electricity when something goes wrong, like if too much current or heat builds up.
Unlike a regular fuse, which burns out once and has to be replaced, a PPTC fuse resets itself after the problem clears. That’s why it’s often called a resettable fuse or polyfuse.
In a power bank, this means you get automatic protection without the hassle of replacing blown parts.
How Does a Polyfuse Work Inside Power Banks?
Under normal conditions, the PPTC fuse lets electricity pass smoothly. But when there’s trouble, say, a short circuit or a device pulling more current than the power bank can safely provide, the fuse reacts:
- Heat builds up inside the fuse.
- The polymer material expands, breaking up the conductive paths.
- Resistance rises sharply, which reduces the flow of current to a safe level.
- Once the issue is gone and the device cools, the fuse resets itself, and power flows normally again.
This self-resetting ability is what makes the polyfuse especially practical in portable chargers.
Why Is a PPTC Fuse Important in Power Banks?
A power bank’s job may seem simple: charge your devices, but in reality, it manages high energy levels in a small package. Without safeguards like a PPTC fuse, issues such as overheating, short circuits, or overcurrent could lead to battery damage, swollen cells, or device failure.
A PPTC fuse helps by adding:
- Overcurrent defense: Prevents excessive power draw from harming the battery.
- Heat protection: Reduces risks of overheating inside the power bank.
- Longer lifespan: Keeps the battery and charging circuits safe over repeated use.
- User convenience: No need to replace a burnt fuse; the polyfuse resets automatically.
Polyfuse vs Regular Fuse
Both serve the same purpose, which is to protect electronics from too much current. The difference lies in what happens after they trip.
- A regular fuse melts open and must be replaced before the device works again.
- A PPTC fuse switches to a high-resistance state, reduces current flow, and then resets once conditions are normal.
This makes PPTC fuses more practical for everyday devices like power banks, where users don’t want the hassle of replacing parts.
Do All Power Banks Have PPTC Fuses?
Not all power banks are built with a polyfuse. Many quality brands include it, but some budget-friendly or ultra-compact models may leave it out to cut costs.
Here’s what to know:

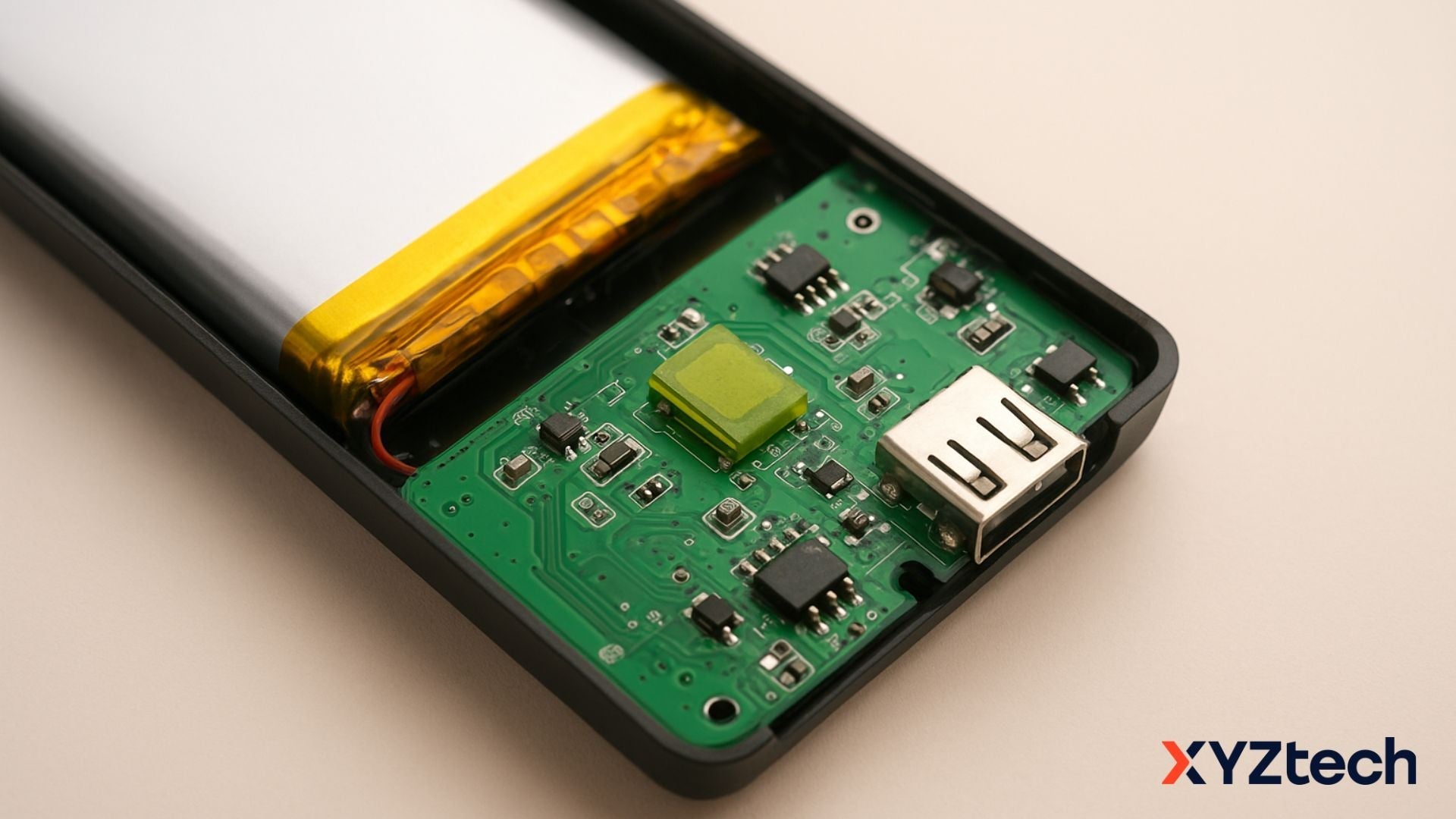

- Where it sits: Usually between the battery and the charging circuit or near the USB output.
- What it does: Protects against overheating, overcurrent, and even potential fire risks if something goes wrong with the cable or device.
- Why it’s not universal: Including a PPTC adds a small cost and takes up space, so cheaper models often rely only on electronic protection circuits.
This is why looking at certifications (like UL, CE, or FCC) and brand reputation matters. Reputable manufacturers layer protections, polyfuses, along with overcurrent and over-temperature protection. While cheaper, unbranded ones may skip them.
Curious About the Technical Side?
You don’t need to be an engineer to benefit from a PPTC fuse, but if you’re the type who likes knowing what’s happening behind the scenes, here are a few quick details:
- Hold current: The maximum current it can handle under normal operation.
- Trip current: The level that makes it switch to protection mode.
- Reset time: May take seconds or longer, depending on conditions.
- Limitations: They react more slowly than traditional fuses and allow a small trickle current even when tripped.
Despite these limits, polyfuses are a good balance of safety and convenience for consumer electronics.
Simple Tips You Can Use as a Consumer
Knowing what a PPTC fuse does is one thing, but how does that help you when shopping for or using a power bank? Here are some simple tips to keep in mind.
- Check the specs: Look for safety features like a PPTC fuse or polyfuse protection.
- Look for certifications: Marks like CE, UL, or FCC show that the power bank passed safety testing.
- Avoid cheap cables: Low-quality accessories can trigger faults even in a well-built power bank.
- Use trusted brands: Established names are more likely to include reliable safety parts.
- Notice performance issues: If your power bank gets unusually hot or stops charging correctly, it may have tripped protection.
Frequently Asked Questions
What is the difference between PTC and PPTC?
A PTC is a type of resistor that changes how much electricity it lets through as it gets hotter. A PPTC, on the other hand, is often called a “resettable fuse.” It’s designed to cut off power if too much current flows, then go back to normal once things cool down. So while both react to heat, the PTC is more about controlling resistance, and the PPTC is mainly about protecting devices from electrical overloads.
What are the disadvantages of a polyfuse?
A PPTC fuse or polyfuse isn’t the fastest at reacting to sudden electrical spikes. It has to warm up before it can limit the current, which takes a moment. That means it’s not the best choice for guarding against quick, sharp surges. Traditional fuses or other safety parts usually handle those better.
How long do resettable fuses last?
Resettable fuses can be used many times, but they don’t last forever. After lots of resets, sometimes around a hundred cycles, they may not work as well as when they were new. Over time, they can also get “weaker,” which means they might trip more easily or not fully reset, so replacing the power bank or device is sometimes the safer long-term option.
Closing Thoughts
A PPTC fuse may be small, but it’s a key part of power bank safety. By acting as a self-resetting shield against overheating and overcurrent, it helps protect both your charger and your devices, while extending their lifespan.
When comparing power banks, knowing that one includes PPTC fuse or polyfuse protection is a good sign that the manufacturer cares about safety, not just low cost. For everyday users, that means peace of mind and a charger you can count on.
Ever had a power bank overheat or trip protection? Drop a comment and let us know. Your insight could help others stay safe.
